2,5-15x
objektiv: 50 mm
30mm Mittelrohr
Throw lever
Parallax correction
nullbare Türme
Batterie Cr2032

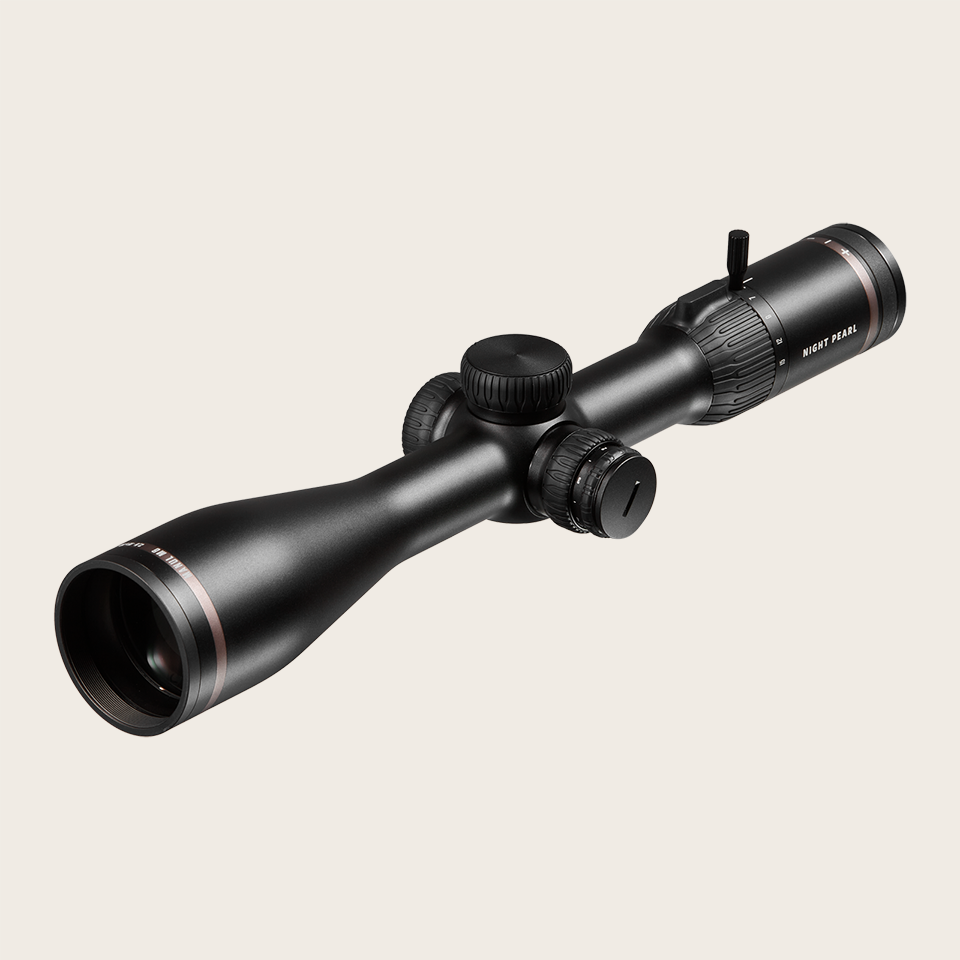

The new Night Pearl Manul M6 riflescopes have been developed to offer hunters and sport shooters a quality optical product for everyday use.
The Manul M6 riflescopes have a 6x optical zoom and the diameter of the central tube is 30 mm.
From the three models, everyone can choose the one that is most suitable for their purposes. The riflescopes meet the highest demands for optical quality, mechanical precision, and robust durability.
Absehen in der zweiten Bildebene (SFP). Leuchtpunkt/-kreuz mit 6 Beleuchtungsstufen.

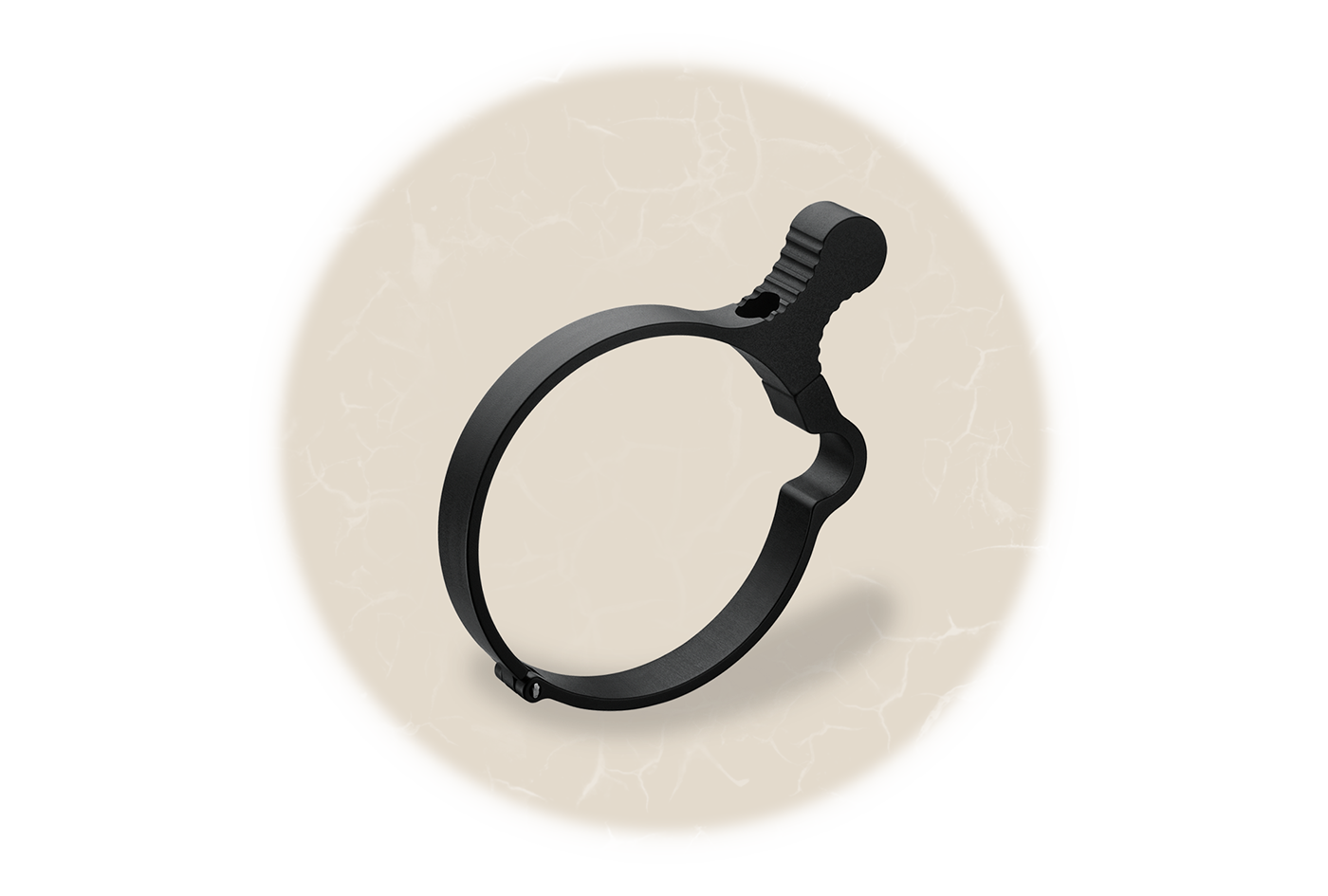

Ein zusätzlicher Schnellzoomhebel wird verwendet, um die Vergrößerungsstufe schneller zu ändern. Der Schnellzoomhebel lässt sich einfach auf den Zoomring schrauben und sofort einsetzen.
MANUL M6 1-6x24 |
MANUL M6 2-12x42 |
MANUL M6 2.5-15x50 |
MANUL M6 4.5-27x56 |
|
| Magnification | 1-6x | 2-12x | 2.5-15x | 4.5-27x |
| Zoom | 6x | 6x | 6x | 6x |
| Center tube diameter | 30 mm | 30 mm | 30 mm | 30 mm |
| Objective Ø | 24 mm | 42 mm | 50 mm | 56 mm |
| Exit pupil diameter (mm) | 10 - 4 | 10.5 - 3.5 | 11 - 3.3 | 9.5 - 2.1 |
| Eye relief (mm) | 100 | 95 | 100 | 100 |
| Field of view (low - high) | 20.7° - 3.6° | 10.6° - 1.83° | 7.7° - 1.3° | 4.67° - 0.8° |
| Field of view (m/100m) | 36.5 - 3.6 m | 18.6 - 3.2 | 13.5 - 2.3 m | 8.2 - 1.4 m |
| Reticle plane | Second | Second | Second | Second |
| Reticle illumination | Yes |
Yes | Yes |
Yes |
| Light transmission - daylight (%) | 92 | 91 | 92 | 92 |
| Light transmission - twilight (%) | 88 | 88 | 88 | 88 |
| Dioptric correction (dpt) | + 3.5 / -2 | + 3 / -3 | + 3.5 / -2 | + 3.5 / -2 |
| Adjustment range | 120 MOA | Elevation 110 Windage 80 |
84 MOA | 24 MIL |
| Elevation and windage adjustment range | 0.5 MOA | 0.25 MOA | 0.25 MOA | 0.1 MIL |
| Adjustment per click (cm/100m) | 1.45 | 0.7 | 0.7 | 1 |
| Length, weight | 258 mm, 533 g | 305.5 mm, 605g | 359 mm, 738 g | 392 mm, 1036 g |
| Parallax correction | Yes | 10m - infinity | 10m - infinity | 25m - infinity |
| Operating temperature | –25 °C to +55 °C | –25 °C to +55 °C | –25 °C to +55 °C | –25 °C to +55 °C |
| Recoil resistance | .338 Lapua Magnum | .338 Lapua Magnum | .338 Lapua Magnum | .338 Lapua Magnum |
| Water resistance | 2m / 2hr | 2m / 2hr | 2m / 2hr | 2m / 2hr |
| Warranty | 5 years (10 years registered) | 5 years (10 years registered) | 5 years (10 years registered) | 5 years (10 years registered) |
Included in delivery:
- MANUL M6 2.5-15x50
- Metal lens caps
- 1x CR2032 battery
- 1x optical cleaning cloth
- 1x quick adjustment lever
- 1x mounting tool
- 1x operating instructions
RETICLE NP4I |
MAGNIFICATION |
DIMENSIONS (CM/100M) |
|||
| Night Pearl Manul M6 2.5-15x50 | 6x | A | B | C | D |
| 5 | 0.7 | 150 | 2.5 | ||
As Night Pearl, we come from a long tradition of hunters, so we know what our community needs. Every day we think about improvements, and every season we bring innovations and features for you, dear hunters.
